Spec Sheet

คุณสมบัติ

• Integrated KVM console with a 19” DVI LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
• Standard rack mount kit included – optional Easy Rack Mounting(single person installation) rack mount kit available (requires separate purchase)
• Supports an external console with USB / DVI / VGA connectors
• Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
• Audio support (speakers)
• Superior video quality – up to 1280 x 1024 @75 Hz;DDC,DDC2,DDC2B
• Standard 105-key keyboard; Sun keyboard emulation
• Multiplatform support – Windows, Linux, Mac, and Sun
• Compatible with most ATEN DVI KVM Switches
• Adjustable depth to fi t within the rack
• Firmware upgradeable
• Console lock – enables the console drawer to remain securely locked away in position when not in use
• DDC emulation – video settings of each computer are automatically adjusted for optimal output to the monitor

ผังการต่อ

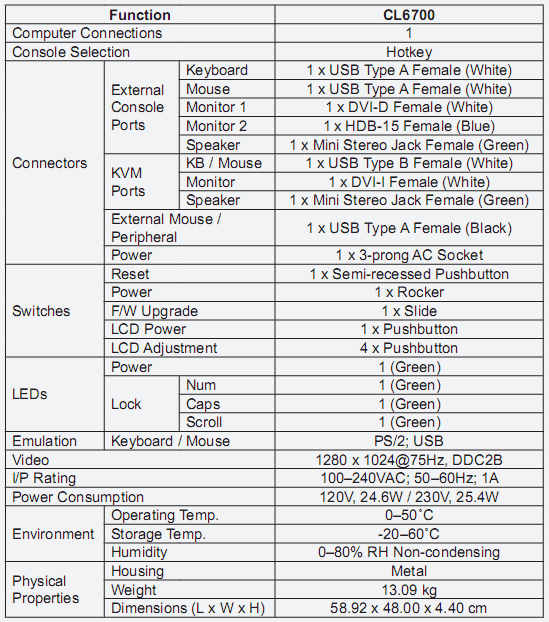

ข้อมูลจำเพาะ
