ATEN Altusen Dual Rail LCD Rack  model : KL9116

 Spec Sheet

Dual Rail LCD 17" IP KVM Switch

IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers from multiple consoles. A single KL9116 can control up to 16 computers and can be accessed from any computer on the Net. The KL9116M features independently retractable 17" LCD monitor and keyboard with built-in touchpad. To maximize space in your data center the keyboard "hides away" when not in use, while the thin profile LCD monitor provides continuous monitoring of computers.

การติดตั้งจอ LCD-KVM แบบ Dual-Rail เข้า Rack server

คุณสมบัติ

• Integrated KVM console with 17" LCD monitor - in a Hideaway™ housing
• Space saving technology with dual bus function support - 1 remote console (one bus) and two local consoles (one bus) control up to 16 computers
• Remotely access computers via the LAN, WAN, or Internet - control your installation when and where you want
• Dual-bus: one local and one remote user can simultaneously control separate ports
• Extra console port-manage computers in the LCD KVM switch from an external
• console (monitor, PS/2 keyboard, and PS/2 mouse)
• Supports external PS/2 mouse
• Supports dedicated OSD and OSD Toolbar invocation keys
• Dual slide-LCD Monitor component can slide independently of the keyboard/touchpad component
• Console lock - enables the console drawer to remain securely locked away in position when not in use
•  Internet browser access, Windows Client and Java Client provided, Java Client works with all operating systems
• Graphical OSD and graphical toolbars for convenient, user-friendly operation
• Up to 64 user accounts - up to 32 concurrent remote logins
• Panel Array Mode - view all 16 ports at the same time
• Message board feature allows logged in users to communicate with each other and allows a remote user to take exclusive control of the KVM functions
• Windows-based Log Server
• Remote power control for attached Power over the Net™ devices
• Three level login security: Administrator, User, and Select
• Advanced security features include password protection and advanced encryption technologies - 1024 bit RSA, 256 bit AES, 56 bit DES, and 128 bit SSL
• RADIUS server support
• Flash firmware upgradable over network connection
• Ports can be set to Exclusive, Occupy and Share
• Network Interfaces: TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX, auto sense, Ping.
• High video resolution: up to 1280x 1024@ 75Hz (17" LCD); 1600 x1200@ 60Hz (Remote)

* รับประกันตัวเครื่อง KVM 3 ปี , หน้าจอ LCD รับประกัน 1 ปี

Requirements:

For Remote Computers:

• For best results, computers that remotely access the KL9116M should have at least PIII GHz processor, with screen resolution set to 1024x748
• For the Windows Client, you must have DirectX 7.0 or higher installed
• For Java Client, you must have Sun's Java 2 (1.4 or higher) runtime environments installed
• Browsers must be 128-bit encryption enabled

For computer Requirements:

• The following equipment must be installed on the computers that connect to the KL9116M's CPU ports:
• A VGA, SVGA or Multi-sync port
• A 6-pin mini-DIN (PS/2) keyboard port
• A 6-pin mini-DIN (PS/2) mouse port
• Cables: 2L5202P (6 ft), additional sizes also available
• USB Servers are supported with the use of the Intelligent KVM cables (2L5202UP, 2L5203UP)

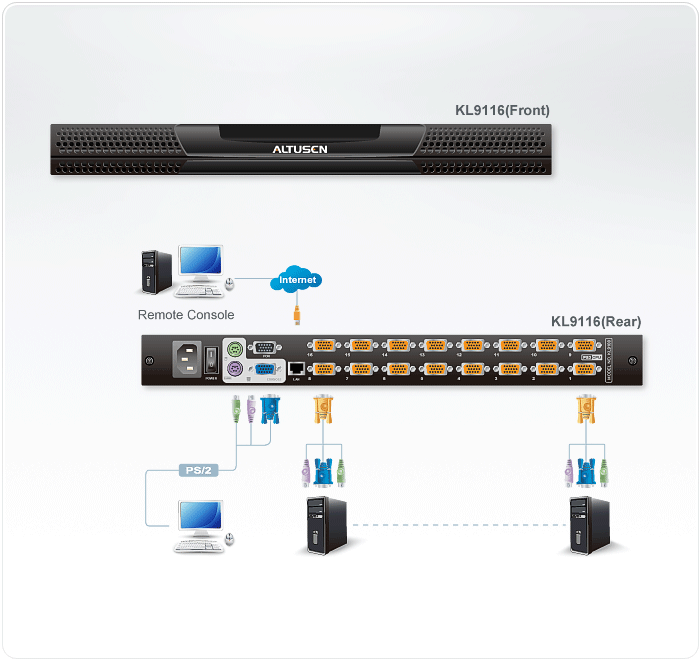

ผังการต่อ

ข้อมูลจำเพาะ

:: กลับขึ้นบน ::

อุปกรณ์ในกล่อง

• 1 x KL9116M Slideaway™ 17" LCD KVM Switch with Standard Rack Mounting Kit
• 2 x Custom PS/2 KVM Cable Set
• 1 x upgrade Long Rack Mounting Kit
• 1 x Power Cord
• 1 x User Manual
• 1 x Quick Start Guide
• 1 x Registration Card
