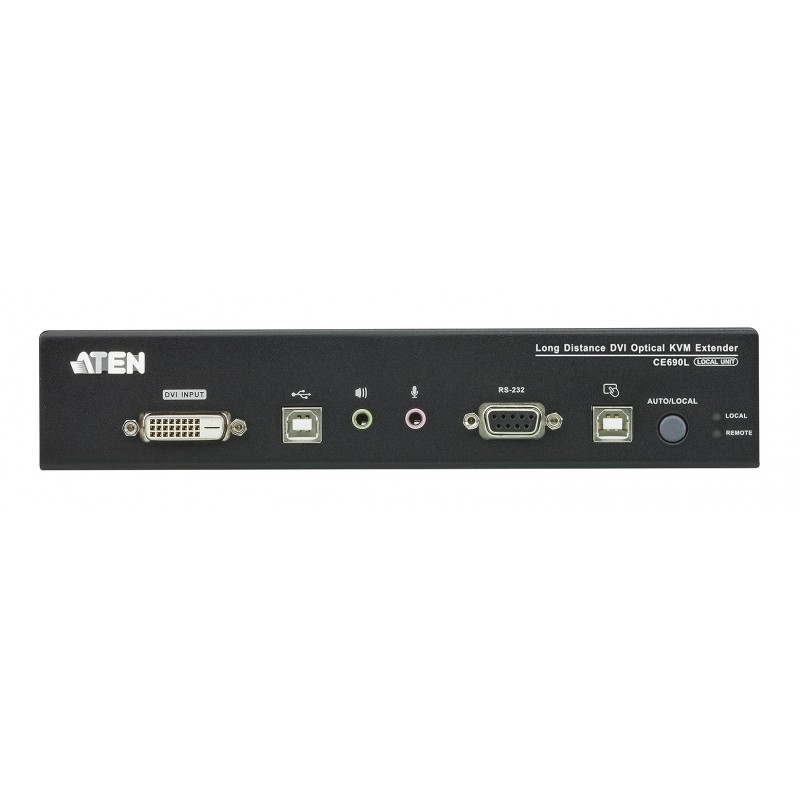

ATEN DVI Optical KVM Extender up to 20km. model : CE690

 Spec Sheet

Features

• Allows access to a computer or KVM installation from a local / remote console
• Supports DVI-D interface and allows transmission of DVI single-link signals
• Superior video quality of up to 1920 x 1200 @60 Hz (24-bits) –get an excellent, crisp image on your screen over long distance transmissions up to 20 km.
• Touchscreen support - connect a generic touchscreen, including devices up to 10-point multi-touch, to accommodate highly interactive applications (no extra drivers needed)
• Dual console operation–control your system from both the local and remote USB keyboard, monitor, and mouse consoles
• Uses one fi ber optic cable to connect the local and remote units
• HDCP compatible
• RS-232 serial port–connect to a serial terminal, or serial devices such as barcode scanners (Baud Rate 115200 bps)
• PC Wakeup support–use a pushbutton on a Remote Unit to wake a PC at the local site via RS-232
• Audio Enabled–supports stereo speakers and microphone
• Rack mountable

Diagram

Specifications

* Note: Operating distance is approximate. These are typical maximum distance that may vary depending on factors such as fiber type, fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.

Package Contents

• 1x CE690L DVI Optical KVM Extender (Local Unit)
• 1x CE690R DVI Optical KVM Extender (Remote Unit)
• 1x Custom KVM Cable Set (1.8m)
• 1x USB Cable (1.8m)
• 2x Power Adapters
• 1x Mounting Kit
• 1x User Instructions
