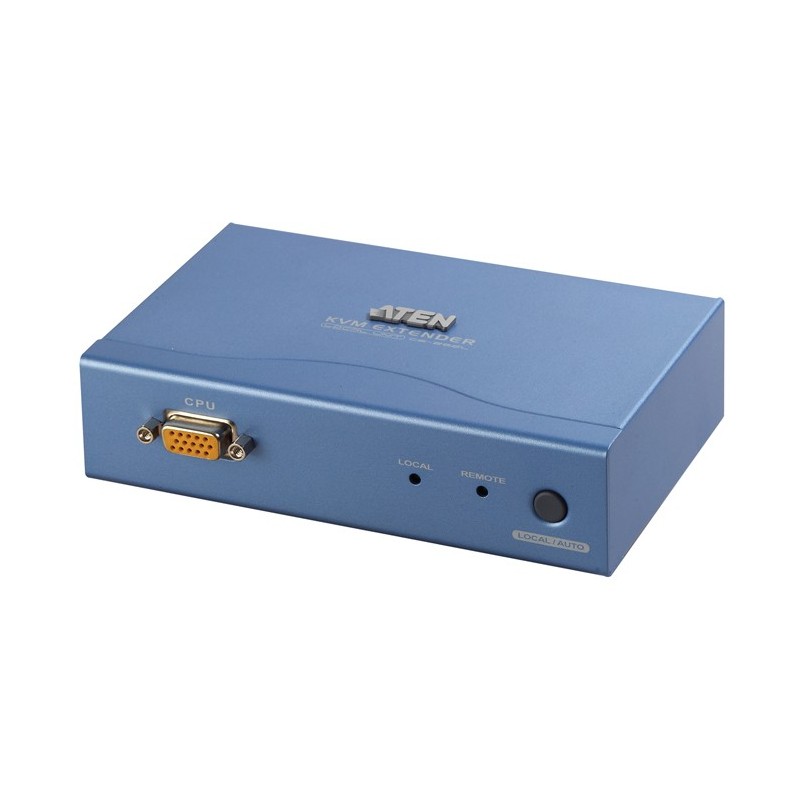

ATEN Console Extender model : CE252

ATEN Console Extender model : CE252
รหัสสินค้า SKU-00422
หมวดหมู่ KVM Extender
ราคา 17,500.00 บาท
สถานะสินค้า พร้อมส่ง
ลงสินค้า 10 ก.ย. 2559
อัพเดทล่าสุด 10 ก.ย. 2559
คงเหลือ ไม่จำกัด
จำนวน
เครื่อง
หยิบลงตะกร้า
บัตรประชาชน
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

 Spec Sheet

คุณสมบัติ

  • Uses Cat 5e cable to connect the local and remote units (up to 300m apart)
  • Dual Console Operation - control your system from both the local and remote PS/2 keyboard, mouse and monitor consoles
  • Additional PC connection allowed for the remote unit
  • Pushbutton selection - sequential selection between local and auto mode
  • Two gain control modes provided for the sharpest video quality-adjustable or automatic
  • Adjustable gain control - manually adjusts signal strength to compensate for distance
  • Automatic Gain Control - automatically adjusts signal strength to compensate for distance
  • High video resolution - up to 1600 x 1200
  • Supports DDC2B for local monitor (display data channel for communication between graphic card and monitor)
  • Supports VGA, SVGA, and Multisync Monitors
  • Built-in 8KV ESD protection and 2KV surge protection
  • Local unit takes its power from the computer - external power is only required when the power from the local computer/computers in the KVM installation is insufficient
  • Multiplatform support: Windows 2000/XP/Vista.

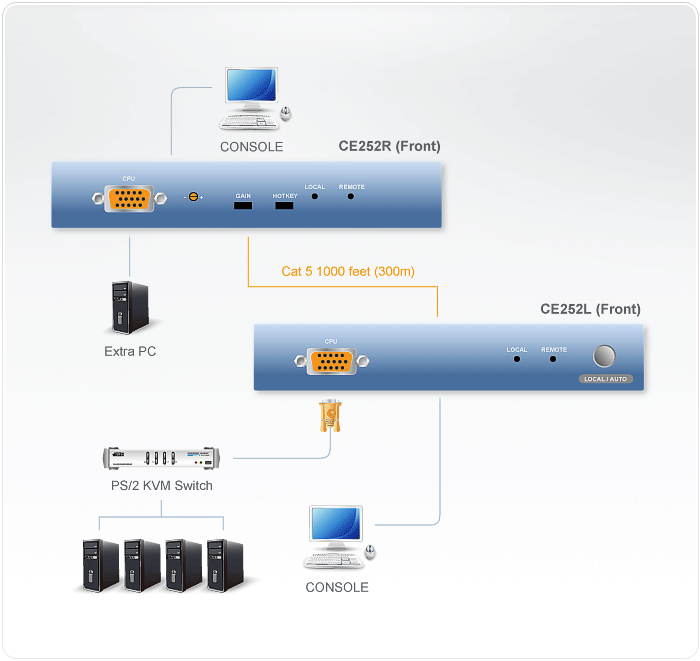

ผังการต่อ

ข้อมูลจำเพาะ

Connectors Console Ports
(Local)
Keyboard 1 x 6-pin Mini-DIN female (Purple)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x 6-pin Mini-DIN female (Green)
Unit to Unit 1 x RJ-45 Female (Black)
Power 1 x DC Jack (Black)
KVM Ports Keyboard / Mouse / Video 1 x SPHD-15 Female (Yellow)
Console Ports
(Remote)
Keyboard 1 x 6-pin Mini-DIN Female (Purple)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x 6-pin Mini-DIN Female (Green)
Unit to Unit 1 x RJ-45 Female (Black)
Power 1 x DC Jack (Black)
LEDs (Local) Local 1 (Green)
Remote 1 (Green)
LEDs (Remote) Local 1 (Green)
Remote 1 (Green)
Switches Selection Mode 1 x Pushbutton
Manual Gain Control (Remote) 1 x Knob
Auto/Manual Gain Selection(Remote) 1 x Slide
Hotkey Selection (Remote) 1 x Slide
Emulation Keyboard / Mouse PS/2
Video

1600 x 1200 @ 60Hz, 150m
1024 x 768 @ 60Hz, 300m

Power Consumption Local DC 5.3V, 2.6W
Remote
Environment Operating Temp. 0 - 50˚C
Storage Temp. -20 - 60˚C
Humidity 0~80% RH, Non-condensing
Physical Properties Housing Metal
Weight Local 0.35 kg
Remote
Dimensions Local 13.90 x 8.80 x 3.80 cm
Remote 13.90 x 8.80 x 3.80 cm

อุปกรณ์ในกล่อง

  • 1x KVM Extender (Remote Unit)
  • 1x KVM Extender (Local Unit)
  • 2x KVM Cable
  • 1x Rack Mounting Kit
  • 1x Power Adapters
  • 2x Grounding Wires
  • 1x Quick Start Guide
  • 1x User Manual

*Cat 5 cable not included
