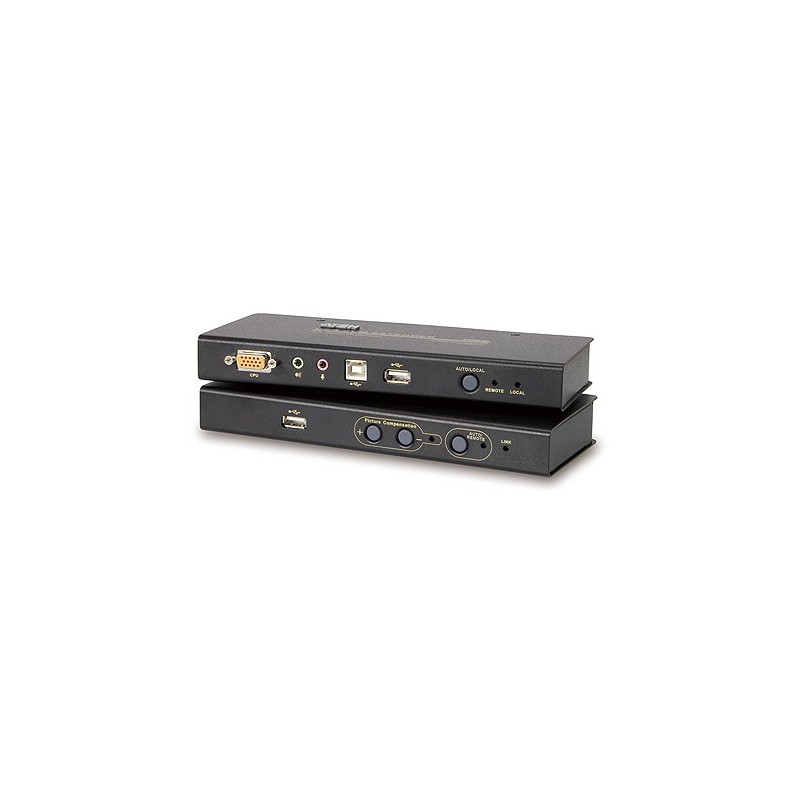

Aten USB console extender model : CE800B

Aten USB console extender model : CE800B
Aten USB console extender model : CE800BAten USB console extender model : CE800BAten USB console extender model : CE800B
รหัสสินค้า SKU-00426
หมวดหมู่ KVM Extender
ราคา 25,500.00 บาท
สถานะสินค้า พร้อมส่ง
ลงสินค้า 10 ก.ย. 2559
อัพเดทล่าสุด 10 ก.ย. 2559
คงเหลือ ไม่จำกัด
จำนวน
เครื่อง
หยิบลงตะกร้า
บัตรประชาชน
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

 Spec Sheet

คุณสมบัติ

  • Cat 5e cable to connect the Local and Remote Units - up to 250 m (825 ft) apart
  • Dual console operation - control your system(s) from both the local and remote consoles
  • Pushbutton selection of the active console
  • Built-in USB port on both units supports external USB Mass Storage compliant flash drives for easy file sharing
  • Special security feature requires login when mounting an external USB storage device on the remote unit
  • Supports VGA, SVGA, and multisync monitors ?local monitor supports DDC; DDC2; DDC2B
  • High resolution video - up to 1600 x 1200 @ 60 Hz
  • Built-in 8KV/15KV ESD protection and 2KV surge protection
  • Adjustable gain control - manually adjusts signal strength to compensate for distance
  • Supports stereo speakers and stereo microphone
  • Supports Microsoft Intellimouse and the scrolling wheel on most mice
  • Upgradable firmware
  • Built-in ASIC for greater reliability and compatibility



ผังการต่อ

ข้อมูลจำเพาะ

Function
CE800BL
CE800BR
Computer Connections 1 N/A
Connectors Console Keyboard 1 x USB Type A Female (White)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x USB Type A Female (White)
Speakers 1 x Mini Stereo Jack (Green)
Microphone 1 x Mini Stereo Jack (Pink)
KVM Ports Keyboard/ Video / Mouse 1 x SPHD-15 Female (Yellow) N/A
USB Port

1 x USB Type B (Female)
1 x USB Type A (Female)

1 x USB Type A (Female)
Speakers 1 x Mini Stereo Jack (Green) N/A
Microphone 1 x Mini Stereo Jack (Pink) N/A
F/W Upgrade 1 x 4-conductor 3.5 mm Jack N/A
Power 1 x DC Jack
Unit to Unit (Link) 1 x RJ-45
Switches Operating Mode Selection 1 x Pushbutton
Compensation
N/A 2 x Pushbutton
LEDs Local 1 (Green) N/A
Remote 1 (Green) 1 (Green)
Link N/A 1 (Green)
Compensation N/A 1 (Orange)
Video 1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1024x768@60Hz at 250m
Power Consumption DC5V, 6W
Environment Operating Temp. 0-50˚C
Storage Temp. -20-60˚C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.50 kg 0.49 kg
Dimensions (L x W x H) 20.00 x 8.00 x 2.50 cm

อุปกรณ์ในกล่อง

  • 1x CE800BL USB KVM Extender (Local Unit)
  • 1x CE800BR USB KVM Extender (Remote Unit)
  • 1x Custom KVM Cable (1.8 m)
  • 2x Power Adapters
  • 1x Firmware Upgrade Cable
  • 1x USB Cable (1.8 m)
  • 2x Grounding Wires
  • 1x Rack Mount Kit
  • 1x User Manual
  • 1x Quick Start Guide
  • 1x Grounding Information Card
